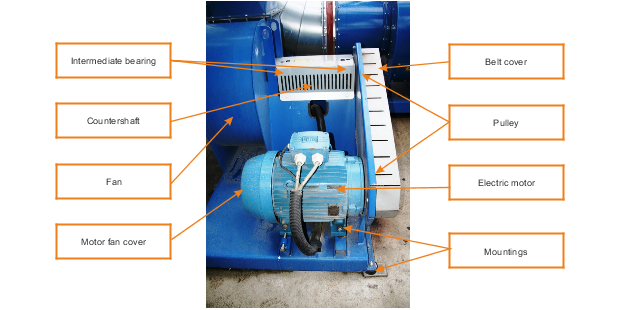

Fig.: Structure of a fan with belt drive
图: 皮带传动的风机的结构
Condition monitoring solutions
状态监测解决方案
Assembly A
装配 A
Fig.: System diagram - Structure of a fan with belt drive
Fig.: 系统图 - 皮带传动的风扇的结构
Assembly B
装配 B
Fig.: System diagram - Structure of a fan with belt drive - Alternative bearing
Fig.: 系统图 - 皮带传动的风扇的结构
Sensor usage:
传感器的使用：
Number of sensors 传感器的数量 |
Usually 4 sensors. One sensor is sufficient for smaller drive units. 通常为4个传感器。对于较小的驱动单元，1个传感器就足够了。 |
Sensor installation 传感器安装 |
Preferably vertical. Horizontal installation is also possible, if necessary. Belt misalignment is particularly apparent in the axial direction. 最好是垂直安装。如果有必要，也可以水平安装。 皮带不对中在轴向上尤为明显。 |
Fan with belt drive - Common problems:
皮带传动的风扇-常见问题:
各个特征值的含义，见 Characteristic values 和 Configuration。
For the meaning of individual characteristic values, see Characteristic values and Configuration.
