X20CM4800X - Data sheet V1.04
Depending on the maximum ambient temperature, additional dummy modules may need to be installed next to the module. If the modules are installed with a vertical mounting orientation, the dummy modules must already be used at a 5°C lower ambient temperature.
Maximum ambient temperature
Up to: horizontal 45°C / vertical 40°C
- No precautions need be taken.
Up to: horizontal 50°C / vertical 45°C
- Depending on the supply voltage used, it may be necessary to install a dummy module.
•24 V supply voltage: No dummy module necessary
•28.8 V supply voltage: 1 dummy module required in front of it
Up to: horizontal 55°C / vertical 50°C

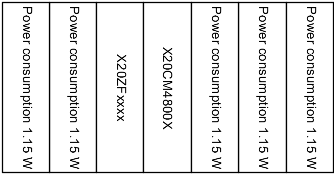

- Always install 1 dummy module in front of it (see diagram above).
Up to: horizontal 60°C / vertical 55°C

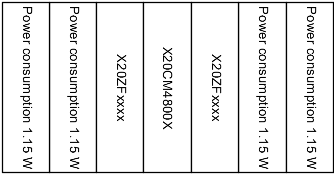

- 2 dummy modules must always be installed.
