Model number

Short description

Figure

Other functions

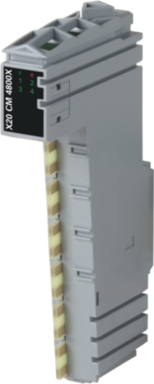

X20CM4800X

X20 analog input module, vibration measurement, 4 IEPE analog inputs, 50 kHz sampling frequency, 24-bit converter resolution

Required accessories

Bus modules

X20BM11

X20 bus module, 24 VDC keyed, internal I/O supply continuous

Terminal blocks

X20TB12

X20 terminal block, 12-pin, 24 VDC keyed

Optional accessories

Sensor cable

0ACC0020.01-1

Cable for accelerometer, length 2 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed

0ACC0050.01-1

Cable for accelerometer, length 5 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed

0ACC0100.01-1

Cable for accelerometer, length 10 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed

0ACC0150.01-1

Cable for accelerometer, length 15 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed

0ACC0200.01-1

Cable for accelerometer, length 20 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed

0ACC0500.01-1

Cable for accelerometer, length 50 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed

0ACC1000.01-1

Cable for accelerometer, length 100 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed

Sensors

0ACS100A.00-1

Accelerometer, nominal sensitivity 100 mV/g, top exit

0ACS100A.90-1

Accelerometer, nominal sensitivity 100 mV/g, side exit
